15BY Micro DC Stepper Gear Motor
Product Overview
High-performance compact stepper motor designed for 3D printers, robotics, and precision applications. Features micro gear design with customizable specifications.
Technical Specifications
- Rated Voltage: DC 1.2V-12V
- Rated Speed: 5rpm-3000rpm
- Motor Size: φ15mm × L10.7mm
- Rated Torque: 0.05kgf.cm-2kgf.cm
- Gearbox Size: φ12mm × 10mm
- Shaft Diameter: φ3mm, φ4mm or Customized
- Rotation Direction: CW & CCW
- Noise Level: ≤55dB
- Weight: 10g
Reduction Ratios
Available reduction ratios: 1:10, 1:20, 1:30, 1:50, 1:75, 1:100, 1:150, 1:210, 1:250, 1:298, 1:300, 1:500, 1:1000. Custom ratios available upon request.
Shaft Types
- Round Type: DIA 3mm, 4mm, 5mm
- D-cut Type: DIA3-D2.5, DIA4-D3, etc.
- Screw Type: M3, M4, M5 Series
- Trapezoid/I-cut Type: DIA3-I2, DIA4-I3
- Other Types: Shaft with hole, etc.

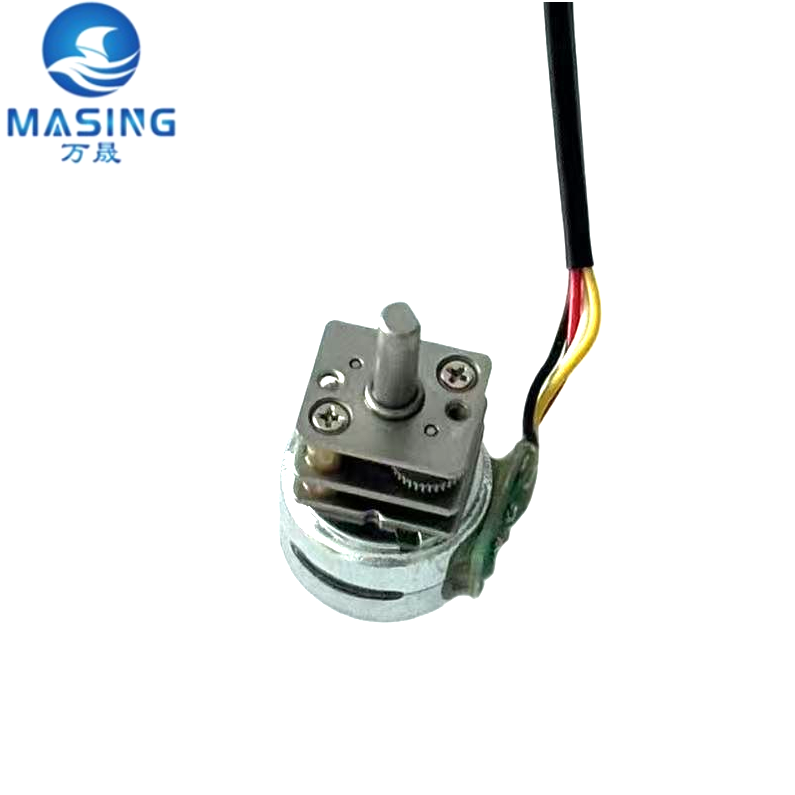

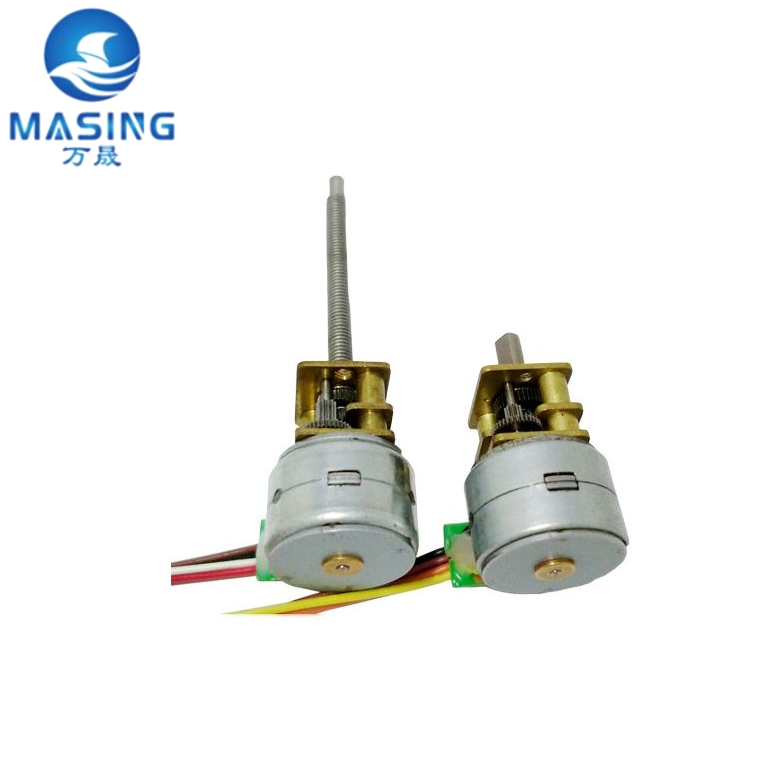

Product Images

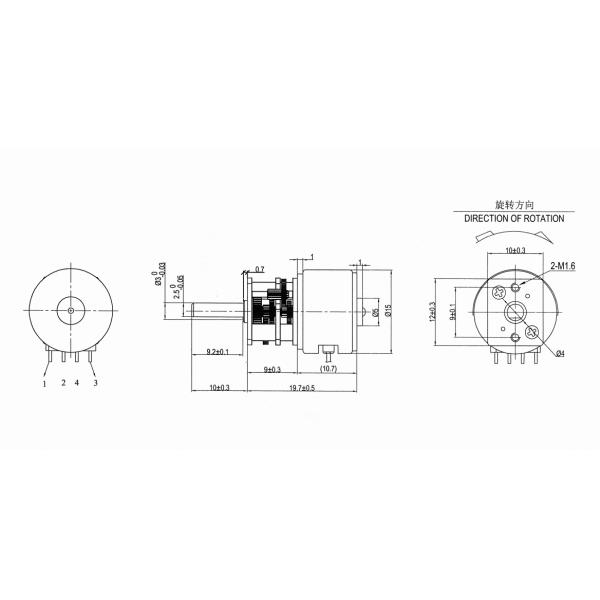

Detailed Specifications
Packaging & Delivery
- Packaging: Strong Carton (1000pcs/box) or custom packaging
- Ports: Shenzhen, Guangzhou, Shanghai
- Package Size: 37×27×24cm
- Gross Weight: 10.0kg
Supply Capacity
100,000 pieces per month
Lead Time
| Quantity (pieces) |
Lead Time (days) |
| 1 - 100 |
10 |
| 101 - 1000 |
15 |
| > 1000 |
To be negotiated |
Samples
- Maximum Order Quantity: 1 piece
- Sample Price: $10/piece
Certifications
Applications
Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, Robots, Locks, Toys, Projectors
Frequently Asked Questions
How to select a suitable motor?
Provide motor pictures, drawings, or detailed specifications including voltage, speed, torque, motor size, working mode, required lifetime, and noise level. We will recommend suitable motors accordingly.
Do you have a customized service for your standard motors?
Yes, we can customize voltage, speed, torque, shaft size/shape, and add wires/cables, connectors, capacitors, or EMC components as needed.
Do you have an individual design service for motors?
Yes, we provide custom motor design services, which may require mold and design charges.
Can I have samples for testing first?
Yes, after confirming motor specifications, we provide quotes and proforma invoices for samples. Payment is required before sample production.
How do you ensure motor quality?
We implement comprehensive inspection procedures: incoming material checks, process inspections, and final inspections to ensure product quality before shipping.
What's your lead time?
Standard products: 25-30 days. Customized products may require longer. Lead times are flexible and depend on specific order requirements.
Quality Assurance: Every product undergoes thorough inspection before leaving the factory. Free sample testing available upon request.
